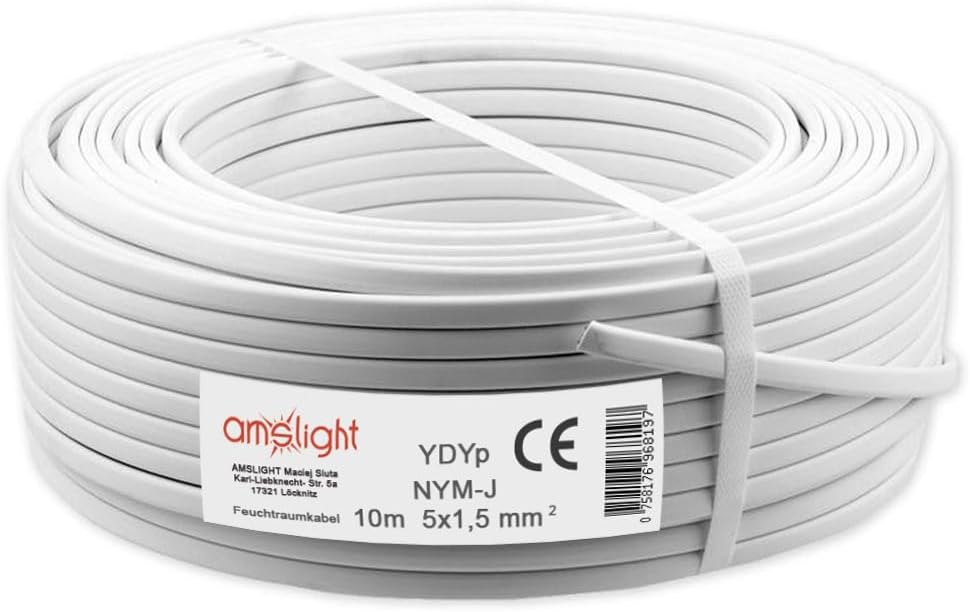

Flat Wet Room Cable YDYp NYM-J 5 x 1.5 10 m

Flat Wet Room Cable YDYp NYM-J 5 x 1.5 10 m

Please note: The ordered length is delivered in one continuous length.
(e.g. 2 x 10 m = 20 m in one piece) – maximum 100 m rolls possible.

Cable type: sheathed cable YDY – equivalent to NYM-J
Use: installation on, in or under plaster, in dry, damp and wet rooms.
Number of cores: as selected; 3 or 5.
Core colours: 3x brown, blue, green-yellow,
At 5x also: black and white
Conductor material: copper
Insulation: wire insulation and outer sheath made of PVC.
Cross section: 3 x 1.5 mm² / 3 x 2.5 mm² / 5 x 1.5 mm² / 5 x 2.5 mm²
Dimensions with insulation (approx. ):

3 x 1.5 mm²: 5.4 mm x 11.0 mm.
3 x 2.5 mm²: 6.3 mm x 14.1 mm.
5 x 1.5 mm²: 6.9 mm x 21.3 m.
5 x 2.5 mm²: 6.9 mm x 23.9 mm.

The ordered length is delivered in one piece (e.g. 2 x 10 m = 20 m in one piece) – maximum 100 m roll
Cable type YDYp – equivalent to NYM-J
Conductor material: copper
EU standard: PN-EN 50525-1:2011
Maximum working temperature: 70°C
